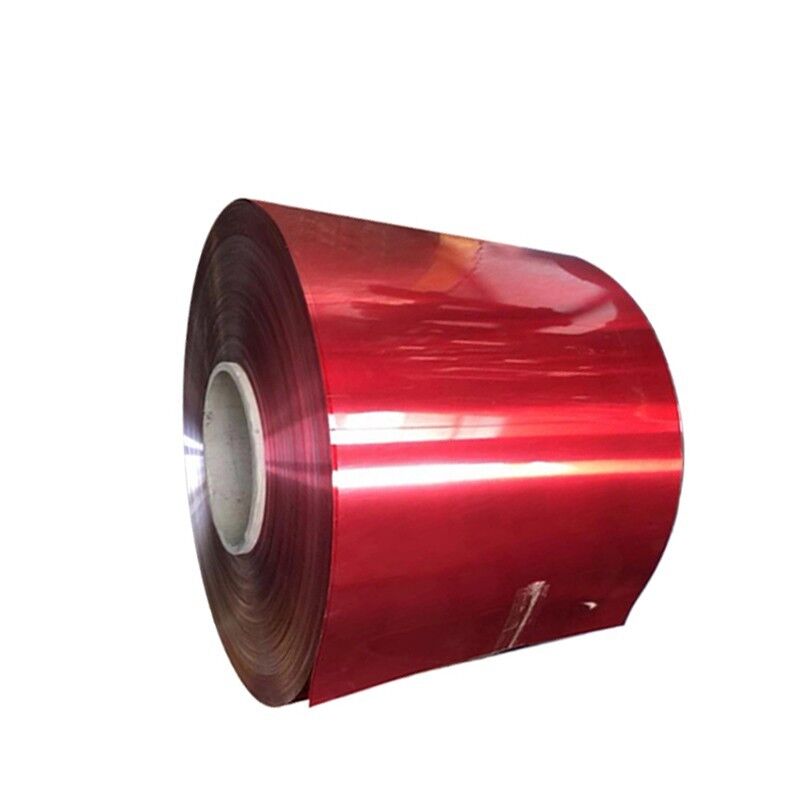

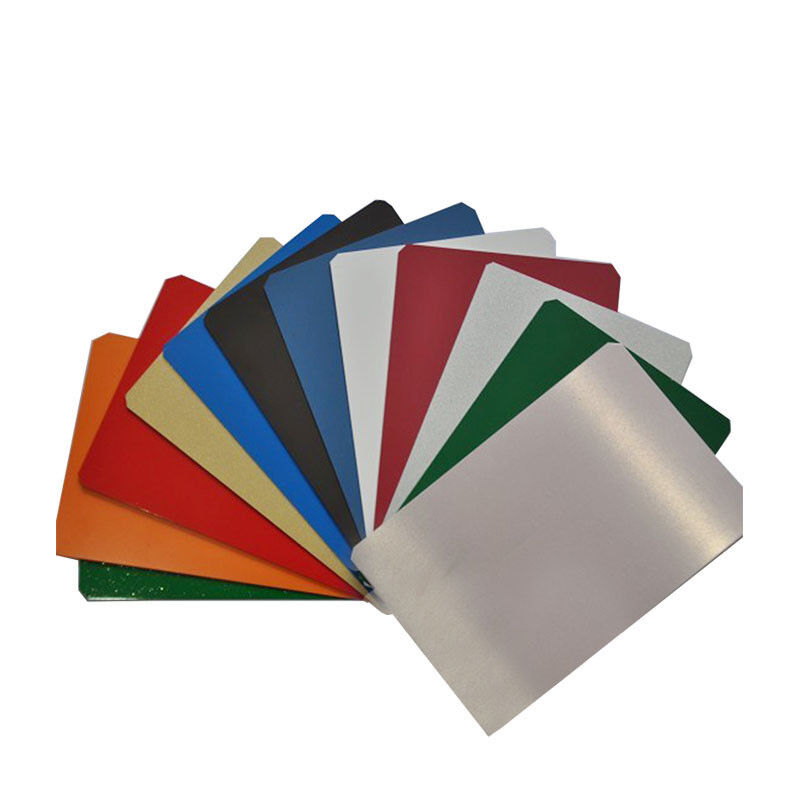

20 / 5 Micron Film PVDF Color Coated Aluminum Coil / Aluminum Sheet 1050 3003 5005

PVDF color coated aluminum coil

1050 coated aluminum coil

3003 coated aluminum coil

Place of Origin:

HENAN, CHINA

Brand Name:

JERO

Certification:

SONCAP SABER ISO CE

Model Number:

JC1

Chat Now

Request A Quote

Product Details

Type:

Coated Aluminum Coil

Material:

1050/3003/5005 Etc

Surface:

Bright Finish

Coating:

PVDF

Gloss:

Standard 25+1-5

Front Coating:

20-25 Microns

Back Coating:

5+5 Microns

T Bend:

1T Bending,no Paints Off

Highlight:

PVDF color coated aluminum coil

1050 coated aluminum coil

3003 coated aluminum coil

Payment & Shipping Terms

Minimum Order Quantity

7 tons

Price

3100-3300USD/TON

Packaging Details

Seaworthy Standard Export Package

Delivery Time

18-30 work days

Payment Terms

L/C,T/T,Western Union,MoneyGram

Supply Ability

2500 tons per month

AA5052 1.5MM PVDF Advertising Board Coated Signage Aluminum Coil

Chat Now

2700mm Super Wide Coated Aluminum Coil Extra Wide Coated Aluminum Material

Chat Now

1050 / 3003 1.0mm Thickness Prepainted Aluminium Coil For Ceiling

Chat Now

3003 H24 Pattern Color Coated Aluminium Coil For Curtain Wall

Chat Now

86-0532-8787-6524

sales@jero-steel.com

86-0532-8787-6520

Chat Now

Product Description

20/5 Micron Film PVDF Color Coated Aluminum Coil / Sheet (1050, 3003, 5005)

Product Specifications

Type	Coated Aluminum Coil
Material	1050/3003/5005 etc
Surface	Bright Finish
Coating	PVDF
Gloss	Standard 25+1-5
Front Coating	20-25 microns
Back Coating	5+5 microns
T Bend	1T bending, no paints off

Premium PVDF Coated Aluminum Solution

Our color coated aluminum sheets are manufactured using high-quality Series 1060, 1100, 3003, 3004, and 5052 materials. Through precise temperature control and specialized technical treatment, we achieve superior adhesion properties. These products are extensively used in aluminum-plastic panels, plates, honeycomb panels, ceilings, roofing systems, and electronic product applications.

Engineered for longevity, our coated aluminum maintains stable performance for over 30 years, offering exceptional corrosion resistance and lightweight properties.

Superior Advantages Over Coated Steel

Light Weight: Aluminum weighs 66% less than steel, significantly reducing shipping and handling costs.
Sustainable: 100% recyclable material that retains original characteristics through recycling processes.
Corrosion Resistant: Naturally forms protective alumina film when exposed to atmosphere, preventing further corrosion.
Deformability: Excellent weldability and ductility for versatile fabrication applications.

Technical Specifications

Product Name	PVDF Color Coated Aluminum Coil
Material	Aluminum Alloy (AA3003, AA3004, AA3105)
Coating Information	PVDF
Size	Width: 500mm-1600mm
Color	RAL standard or custom matched
Application	Construction: Roofing, wall panels, curtain walls, ceilings
Reverse Impact	9J pants, no paints off
Pencil Hardness	≥HB
Organic Solvent Resistance	Butanone MEK wipes 100 times, no paints breakage
Scratch Resistance	1000g probe test, no paints breakage
Humidity and Heat Resistance	1000 hours in test chamber with no degradation
Boiling Water Resistance	2 hours at 100°C with no performance loss

Advanced Manufacturing Capabilities

Our facility operates four specialized coating production lines, including three coil roller coated lines and one sheet coating line, with an annual capacity of 50,000 tons. We feature one of China's most advanced aluminum veneer production lines, capable of producing one million square meters annually.

Additional equipment includes two column slitting machines, two cutting machines, and two embossing machines. We specialize in color coated aluminum coils, aluminum magnesium manganese roof panels, curtain wall veneers, metal antique tiles, and various stone/wood grain coated aluminum products.

Notably, we lead the industry with capability to produce ultra-thick (5.0mm+) and ultra-wide (2700mm) coated aluminum products.
