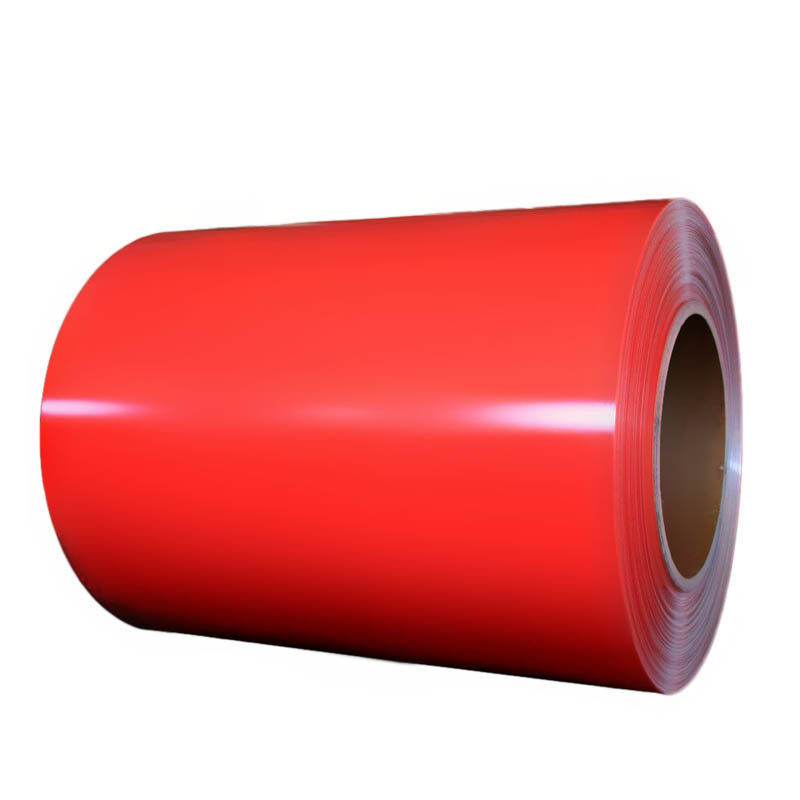

Name: 3003 H24 Red Color Pvdf Aluminium Sheet Coil For Curtain Wall
Brand: Qingdao Jero Steel Co., Ltd.
SKU: JC65
Price: 2,115.00 USD
Availability: InStock

Home > Products > Prepainted Aluminum Coil >

3003 H24 Red Color Pvdf Aluminium Sheet Coil For Curtain Wall

Red Color Aluminium Sheet Coil

3003 H24 Aluminium Sheet Coil

Curtain Wall Aluminium Sheet Coil

Place of Origin:

CHINA

Brand Name:

JERO

Certification:

SONCAP SABER ISO CE

Model Number:

JC65

Chat Now

Request A Quote

Product Details

Type:

PVDF Coated Aluminum Coil

Material:

1050/3004/5005 Etc

Surface:

Bright Finish Surface

Coating:

PE, PVDF Etc

Front Coating:

15-25 Microns/as Your Request

Back Coating:

5+10 Microns

Highlight:

Red Color Aluminium Sheet Coil

3003 H24 Aluminium Sheet Coil

Curtain Wall Aluminium Sheet Coil

Payment & Shipping Terms

Minimum Order Quantity

10 tons

Price

2000-2230USD/TON

Packaging Details

Seaworthy Standard Export Package

Delivery Time

18-30 work days

Payment Terms

L/C,T/T,Western Union,MoneyGram

Supply Ability

7000 TONS PER MONTH

AA5052 1.5MM PVDF Advertising Board Coated Signage Aluminum Coil

Chat Now

2700mm Super Wide Coated Aluminum Coil Extra Wide Coated Aluminum Material

Chat Now

1050 / 3003 1.0mm Thickness Prepainted Aluminium Coil For Ceiling

Chat Now

3003 H24 Pattern Color Coated Aluminium Coil For Curtain Wall

Chat Now

86-0532-8787-6524

sales@jero-steel.com

86-0532-8787-6520

Chat Now

Product Description

3003 H24 Red Color PVDF Aluminium Sheet Coil for Curtain Wall

High-quality PVDF coated aluminum coil specifically designed for curtain wall applications in modern architectural projects.

Product Specifications

Type	PVDF coated aluminum coil
Material	1050/3004/5005 etc
Surface	Bright finish surface
Coating	PE, PVDF etc
Front coating	15-25 microns/as your request
Back coating	5+10 microns

Product Overview

Color coated aluminum sheet is manufactured using Series 1060, 3003, 5052 materials, processed with temperature control and specialized techniques for optimal coating adhesion. Our coating system is engineered for exterior applications in high-end buildings, including metal exterior panels and curtain wall systems.

Designed specifically for architectural applications, this product guarantees 12 years of performance under normal conditions in Asian climates.

Available in two export forms: coil and sheet. Sheets are securely loaded on trays for safe transportation.

Advantages Over Pre-painted Steel Material

Light weight: Aluminum is 65% lighter than steel, making transportation easier and more cost-effective
Corrosion resistant: Forms protective alumina film when exposed to atmosphere, preventing further corrosion
Deformability: Excellent weldability and ductility for various applications

Basic Parameters

Alloy/Grade	1000 Series, 3000 Series, 5000 Series
Temper	O-H112, T3-T8, T351-T851
Thickness	0.2-5mm
Width	10-1800mm
Length	Customizable
Application	Building, Decoration, Construction, etc.
Surface treatment	PE, PVDF Coating
Color	RAL standard color or custom sample
Delivery time	7-25 days after order confirmation
MOQ	3 tons
Loading Port	Qingdao Port, Tianjin Port, Shanghai port

Applications

Widely used in aluminum-plastic panels, plates, honeycomb panels, ceilings, roofing, and electronic products. With stable performance, anti-corrosion properties, and light weight, these aluminum color plates can last up to 30 years.

Company Advantages

Quality Focus

We maintain a careful and serious working attitude with attention to detail in all production processes.

Market Expertise

With extensive export experience, we understand overseas markets well and can anticipate market changes based on domestic and international trends.

Professional Team

Our professional sales and production teams work with long-term cooperative forwarders and harbor reinforcement teams to ensure quality control from inspection to loading.

Packaging and Loading

Standard export packaging includes 3 protective layers: inner craft paper, middle waterproof plastic film, and outer hard paper sheet covered by steel strips with lock, plus inner coil sleeve.

To prevent movement during transit, we use wood strips, wood plugs, wire ropes, and other reinforcement materials to secure the aluminum coils in containers.
