Name: 3003 H24 High Durable Red Pre Painted Aluminum Coil For ACP
Brand: Qingdao Jero Steel Co., Ltd.
SKU: JC68
Price: 2,115.00 USD
Availability: InStock

Home > Products > Prepainted Aluminum Coil >

3003 H24 High Durable Red Pre Painted Aluminum Coil For ACP

High Durable Pre Painted Aluminum

Red Pre Painted Aluminum Coil

3003 Pre Painted Aluminum Coil

Place of Origin:

CHINA

Brand Name:

JERO

Certification:

SONCAP SABER ISO CE

Model Number:

JC68

Chat Now

Request A Quote

Product Details

Type:

PVDF Coated Aluminium Coil

Material:

1050/3004/3105/5005 Etc

Surface:

Bright Finish Surface

Coating:

PE, SMP, PVDF Etc

Front Coating:

15-25 Microns/as Your Request

Back Coating:

5+10 Microns

Highlight:

High Durable Pre Painted Aluminum

Red Pre Painted Aluminum Coil

3003 Pre Painted Aluminum Coil

Payment & Shipping Terms

Minimum Order Quantity

10 tons

Price

2000-2230USD/TON

Packaging Details

Seaworthy Standard Export Package

Delivery Time

18-20 work days

Payment Terms

L/C,T/T,Western Union,MoneyGram

Supply Ability

7500 TONS PER MONTH

AA5052 1.5MM PVDF Advertising Board Coated Signage Aluminum Coil

Chat Now

2700mm Super Wide Coated Aluminum Coil Extra Wide Coated Aluminum Material

Chat Now

1050 / 3003 1.0mm Thickness Prepainted Aluminium Coil For Ceiling

Chat Now

3003 H24 Pattern Color Coated Aluminium Coil For Curtain Wall

Chat Now

86-0532-8787-6524

sales@jero-steel.com

86-0532-8787-6520

Chat Now

Product Description

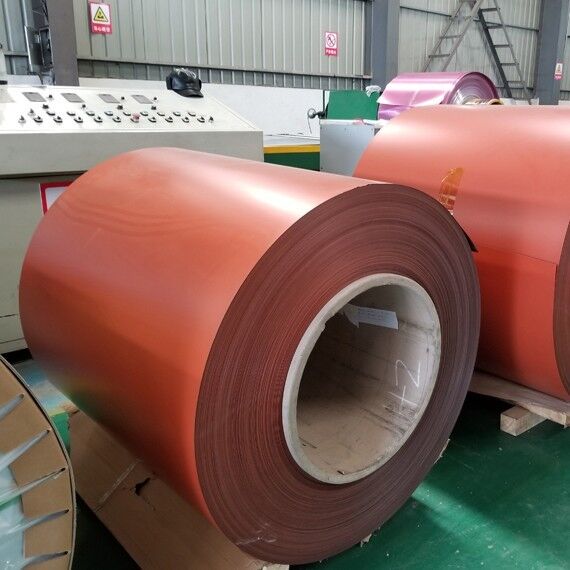

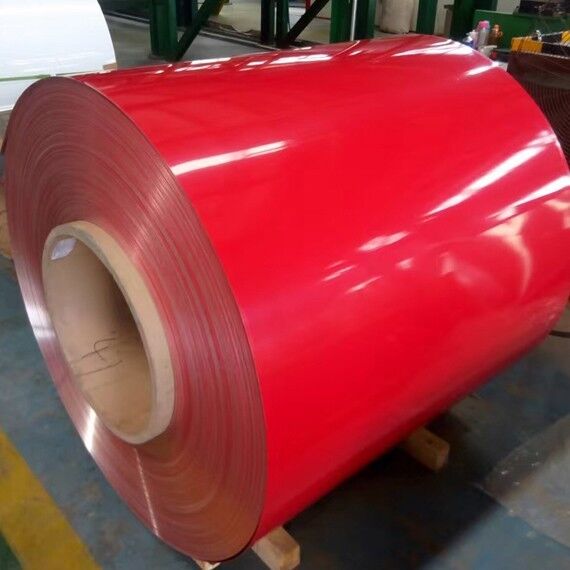

3003 H24 High Durable Red Pre Painted Aluminum Coil For ACP

Our 3003 H24 high durable red pre-painted aluminum coil is specifically designed for aluminum composite panels (ACP) applications, offering exceptional durability and performance.

Product Specifications

Attribute	Value
Type	PVDF coated aluminium coil
Material	1050/3004/3105/5005 etc
Surface	Bright finish surface
Coating	PE, SMP, PVDF etc
Front coating	15-25 microns/as your request
Back coating	5+10 microns

Product Description

Our color coated aluminum coils undergo surface coloring treatment with various coating options including fluorocarbon and polyester. These high-quality materials are widely used in aluminum plastic plates, veneers, ceilings, edges, and electronic products.

Manufacturing Capabilities

Professional color coated aluminum material manufacturer with 3 production lines for coil and 2 lines for sheet
Maximum production width of 2700mm
Clear internal management and standardized processes ensure smooth, efficient production

Our product range includes:

Color coated aluminum coil
Wood grain coated aluminum coil
Stone texture coated aluminum coil
Al-Mn-Mg roof aluminum coil
Mirror finish coated aluminum coil

We also produce curtain wall aluminum veneer, aluminum honeycomb panel, and heat transfer printed aluminum coil.

Quality Assurance

Batch testing of raw materials for bending and hardness properties
Online inspection systems monitor coating thickness, uniformity, and adhesion
Pre-delivery sample testing including grid, impact, and bending tests
Chemical testing for special products
MTC provided for every batch with maintained test records

Export Options

Available in coil and plate forms. Aluminum plates are loaded on trays for secure transportation.

Surface Options

Mirror Finish Example

Standard Colors

Custom colors available upon request. Below are standard color examples:

Advantages Over Pre-painted Steel

Light weight: Aluminum is one-third lighter than steel, reducing shipping costs
Corrosion resistant: Forms protective alumina film to prevent further corrosion
Deformability: Excellent weldability and ductility for various applications

Technical Parameters

Parameter	Range
Thickness Range	0.2 - 5mm
Width Range	Maximum 1800mm
Alloy	3003, 3004, 3005, 3105
Paint System	Polyester, SMP, PVDF
Color Options	RAL color
Temper	O, H22, H24, H26

Applications

Ideal for aluminum-plastic panels, ceilings, roofing, gutters, shutters, and electronic products. With stable performance, anti-corrosion properties, and light weight, our aluminum color sheets can last up to 30 years.

Packaging & Shipping

Standard export packaging includes 3 protective layers: craft paper inner layer, waterproof plastic film middle layer, and hard paper sheet outer layer secured with steel strips and lock. Each coil includes an inner sleeve.

We use reinforcement materials like wood strips, plugs, and wire ropes to prevent movement during transit.
