Home > Products > Prepainted Aluminum Coil >
3004 1.6mm Thickness PVDF Aluminium Coil Coating For Curtain Wall

3004 1.6mm Thickness PVDF Aluminium Coil Coating For Curtain Wall

3004 PVDF Aluminium Coil Coating

1.6mm PVDF Aluminium Coil Coating

Curtain Wall PVDF Aluminium Coil

Place of Origin:

CHINA

Brand Name:

JERO

Certification:

SONCAP SABER SGS CNCA FTA

Model Number:

JC15

Chat Now
Request A Quote
3004 1.6mm Thickness PVDF Aluminium Coil Coating For Curtain Wall 3004 1.6mm Thickness PVDF Aluminium Coil Coating For Curtain Wall 3004 1.6mm Thickness PVDF Aluminium Coil Coating For Curtain Wall 3004 1.6mm Thickness PVDF Aluminium Coil Coating For Curtain Wall
Product Details
Type:
Painted Aluminum Coil
Material:
1050/3004/3105 Etc
Surface:
Bright
Coating:
PE, SMP, PVDF
Front Coating:
15-25 Microns/as Your Request
Back Coating:
5+10 Microns
Highlight:

3004 PVDF Aluminium Coil Coating

,

1.6mm PVDF Aluminium Coil Coating

,

Curtain Wall PVDF Aluminium Coil

Payment & Shipping Terms
Minimum Order Quantity
7 tons
Price
2000-2150USD/TON
Packaging Details
Seaworthy Standard Export Package
Delivery Time
18-22 work days
Payment Terms
L/C,T/T,Western Union,MoneyGram
Supply Ability
8200 TONS PER MONTH
RELATED PRODUCTS
Good price AA5052 1.5MM PVDF Advertising Board Coated Signage Aluminum Coil online

AA5052 1.5MM PVDF Advertising Board Coated Signage Aluminum Coil

Chat Now
Good price 2700mm Super Wide Coated Aluminum Coil Extra Wide Coated Aluminum Material online

2700mm Super Wide Coated Aluminum Coil Extra Wide Coated Aluminum Material

Chat Now
Good price 1050 / 3003 1.0mm Thickness Prepainted Aluminium Coil For Ceiling online

1050 / 3003 1.0mm Thickness Prepainted Aluminium Coil For Ceiling

Chat Now
Good price 3003 H24 Pattern Color Coated Aluminium Coil For Curtain Wall online

3003 H24 Pattern Color Coated Aluminium Coil For Curtain Wall

Chat Now
CONTACT US
86-0532-8787-6524
sales@jero-steel.com
86-0532-8787-6520
Chat Now
Product Description
3004 1.6mm Thickness PVDF Aluminium Coil Coating For Curtain Wall
Color coated aluminum refers to aluminum coils or sheets treated with advanced coating technologies including polyester (PE), fluorocarbon (PVDF), or epoxy paints. Through comprehensive processes of cleaning, chroming, roller coating, and high-temperature baking, these coatings significantly enhance durability, aesthetic appeal, and resistance to environmental factors.
3004 1.6mm Thickness PVDF Aluminium Coil Coating For Curtain Wall 0

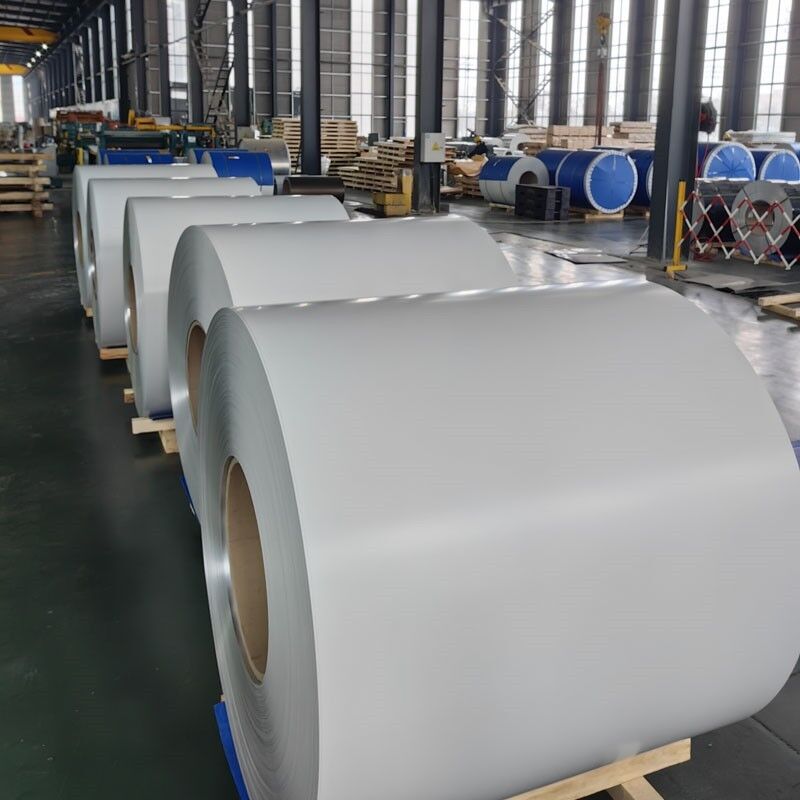

Export Forms
Available in both coil and sheet formats, with production capability for 1800mm ultra-wide coils at maximum capacity.
3004 1.6mm Thickness PVDF Aluminium Coil Coating For Curtain Wall 1
Types of Color Coated Aluminum
Polyester (PE) Coated Aluminum: UV-resistant and cost-effective solution with 10-year warranty. Available in matte or high-gloss finishes, providing vibrant colors and smooth textures ideal for interior decor, signage, and ceiling panels.
Fluorocarbon (PVDF) Coated Aluminum: Superior weather resistance with 30-year warranty, specifically designed for harsh environments. Perfect for outdoor façades, curtain walls, and high-traffic areas including airports and shopping malls.
Surface Treatment Options
Mirror Finish: Provides a sleek, highly reflective surface for premium architectural accents and electronic components.
3004 1.6mm Thickness PVDF Aluminium Coil Coating For Curtain Wall 2
Brushed Finish: Features delicate linear patterns with matte texture, ideal for modern interior decor and industrial equipment.
3004 1.6mm Thickness PVDF Aluminium Coil Coating For Curtain Wall 3
Embossed Stucco Finish: Creates durable 3D stone-like texture, perfect for outdoor walls and robust commercial facades.
3004 1.6mm Thickness PVDF Aluminium Coil Coating For Curtain Wall 4
Advantages Over Pre-painted Steel
3004 1.6mm Thickness PVDF Aluminium Coil Coating For Curtain Wall 5
  • Forms protective alumina film with atmosphere to prevent further corrosion
  • 100% recyclable material that maintains original characteristics during recycling
  • PVDF 20/30 paint protection against UV rays, preventing fading and deterioration
  • One-third lighter weight than steel, resulting in easier handling and reduced shipping costs
Production Specifications
Parameter Range
Thickness Range 0.20 - 5.0mm
Width Range Max. 1800mm
Alloy Types 1050, 1060, 3003, 3004, 3105, 5052
Paint Systems PE, SMP, PVDF
Color Options RAL colors or custom samples
Application Guide
Thickness Coating Typical Usage
0.8mm PE Indoor ceiling
1.2mm PVDF Light weight roof
2.5mm PVDF High-rise curtain wall
4.0mm PVDF + Anodized Curved surface design for terminal buildings
Widely used in residential siding, pre-engineered buildings, architectural wall panels, aluminum-plastic panels, ceilings, roofing, shutters, and electronic products. Aluminum color sheets provide stable performance, anti-corrosion properties, and light weight for up to 30 years of service life.
3004 1.6mm Thickness PVDF Aluminium Coil Coating For Curtain Wall 6
