Place of Origin:
CHINA
Brand Name:
JERO
Certification:
SONCAP SABER SGS CNCA FTA
Model Number:
JC15
Color coated aluminum refers to aluminum coils or sheets treated with advanced coating technology including polyester (PE), fluorocarbon (PVDF), or epoxy paints. Through processes like cleaning, chroming, roller coating, and high-temperature baking, these coatings enhance durability, aesthetics, and resistance to environmental factors.

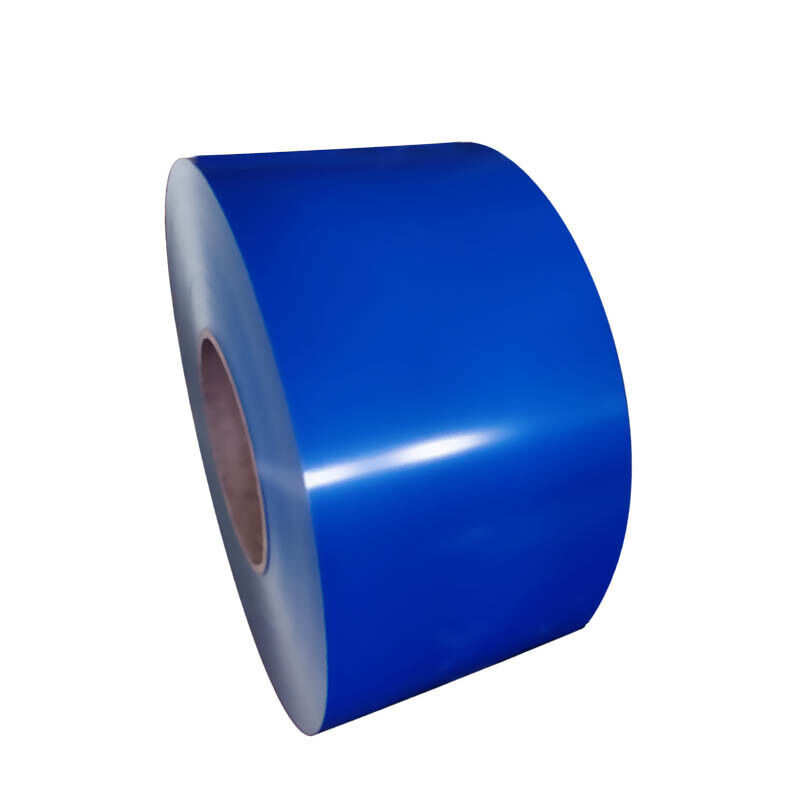

Available in coil and sheet forms, with production capability for ultra-wide coils up to 1800mm maximum width.
UV-resistant and cost-effective, PE-coated aluminum offers a 10-year warranty. Available in matte or high-gloss finishes, it provides vibrant colors and smooth textures for interior decor, signage, and ceiling panels.
With a 30-year warranty, PVDF coatings excel in harsh environments due to superior weather resistance. Ideal for outdoor facades, curtain walls, and high-traffic areas like airports and shopping malls.
Mirror polished aluminum provides a sleek, highly reflective surface for premium architectural accents and electronic components.
Features delicate linear patterns, ideal for modern interior decoration and industrial equipment with a matte texture.
Creates a durable 3D stone-like texture, perfect for outdoor walls and robust commercial facades.
| Parameter | Range |
|---|---|
| Thickness Range | 0.20 - 5.0mm |
| Width Range | Max. 1800mm |
| Alloy Options | 1050, 1060, 3003, 3004, 3105, 5052 |
| Paint System | PE, SMP, PVDF |
| Color Options | RAL color or custom sample matching |
| Thickness | Advised Coating | Typical Usage |
|---|---|---|
| 0.8mm | PE | Indoor ceiling |
| 1.2mm | PVDF | Light weight roof |
| 2.5mm | PVDF | High-rise curtain wall |
| 4.0mm | PVDF + Anodized | Curved surface design of terminal buildings |
Widely used in residential siding, pre-engineered buildings, architectural wall panels, aluminum-plastic panels, ceilings, gutters, shutters, and electronic products.
Aluminum color sheets provide stable performance, anti-corrosion properties, and light weight, ensuring reliable service for up to 30 years.
