Name: Durable 80UM Prepainted Aluminum Coil , Surlyn Film Colour Coated Aluminium Coil
Brand: Qingdao Jero Steel Co., Ltd.
SKU: JC19
Price: 3,050.00 USD
Availability: InStock

Home > Products > Prepainted Aluminum Coil >

Durable 80UM Prepainted Aluminum Coil , Surlyn Film Colour Coated Aluminium Coil

Durable Prepainted Aluminum Coil

80UM Prepainted Aluminum Coil

Surlyn Film Colour Coated Aluminium Coil

Place of Origin:

CHINA

Brand Name:

JERO

Certification:

SONCAP BIS SABER SGS CE

Model Number:

JC19

Chat Now

Request A Quote

Product Details

Type:

Surlyn Film Coated Aluminium Coil

Material:

1100/3003/5052/5754

Front Coating:

25-100 Microns

Surface:

Bright Finish Surface

Coating:

Surlyn

Highlight:

Durable Prepainted Aluminum Coil

80UM Prepainted Aluminum Coil

Surlyn Film Colour Coated Aluminium Coil

Payment & Shipping Terms

Minimum Order Quantity

7 tons

Price

3000-3100USD/TON

Packaging Details

Seaworthy Standard Export Package

Delivery Time

18-25 working days

Payment Terms

L/C,T/T,Western Union,MoneyGram

Supply Ability

5,000 TONS PER MONTH

AA5052 1.5MM PVDF Advertising Board Coated Signage Aluminum Coil

Chat Now

2700mm Super Wide Coated Aluminum Coil Extra Wide Coated Aluminum Material

Chat Now

1050 / 3003 1.0mm Thickness Prepainted Aluminium Coil For Ceiling

Chat Now

3003 H24 Pattern Color Coated Aluminium Coil For Curtain Wall

Chat Now

86-0532-8787-6524

sales@jero-steel.com

86-0532-8787-6520

Chat Now

Product Description

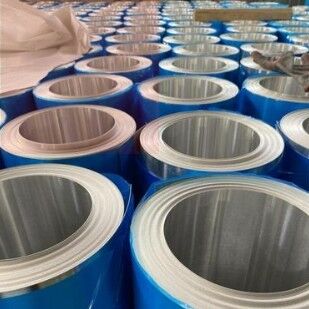

Durable 80UM Prepainted Aluminum Coil with Surlyn Film Coating

A Surlyn film-coated color aluminum coil refers to an aluminum coil or sheet laminated with Surlyn resin film, combining the lightweight and corrosion-resistant properties of aluminum with enhanced surface durability and aesthetics.

Technical Specifications

Base Material	AA1100, AA3003, AA5052, AA5754
Aluminum Thickness	0.2mm - 3.0mm
Coil Width	800mm - 1600mm (customizable)
Surlyn Film Thickness	25μm - 100μm
Surface Finish	Glossy, Matte, Embossed, Textured
Peel Strength	≥5 N/mm (ASTM D903)
Temperature Range	-40°C to +120°C (short-term up to 150°C)

Key Features

Weather Resistance: UV-resistant, anti-yellowing, and withstands extreme temperatures (-40°C to 80°C)
Aesthetic Flexibility: Customizable colors, gloss levels (matte/glossy), and textures (e.g., wood grain, metallic)
Scratch Resistance: Hard-coated surface reduces damage during handling
Eco-Friendly: Low VOC emissions, recyclable
Processability: Suitable for bending, punching, and cutting without film peeling

Applications

Architecture: Curtain walls, ceilings, partitions
Appliances: Refrigerator/AC panels
Transportation: Vehicle interiors, ship cladding
Advertising: Outdoor signage, displays

Comparison with Other Coatings

Coating Type	Pros	Cons
Surlyn Film	Extreme durability, high clarity, impact-resistant, flexible	Higher cost than PE/PVDF
PVDF Coating	Excellent weather resistance (20+ years), chemical resistant	Limited color options, less flexible
PE/Polyester Coating	Low cost, wide color selection	Poor UV resistance (5-8 years lifespan)
Anodized Aluminum	Hard, scratch-resistant surface	Limited colors, brittle

Our Company Advantages and Production Range

Advanced Equipment

German SMS Group fully automated coating lines with ±0.01mm thickness precision, Line Speed: 120m/min (20% faster than industry average)
MES system enables real-time production monitoring with ≥99.3% product qualification rate
Multi-spectral imaging detects micro-defects as small as 0.02mm² with 99.8% recognition accuracy

Technology Patents

Anti-Static Color Aluminum Coil and Continuous Production System
Chromium-Free Passivation Solution for Color-Coated Aluminum Coils and Preparation Method
Production Process for High Solar-Reflectance Color Aluminum Coils
Method for Preparing 3D Wood Grain Aluminum Coil Based on Nanoimprint Technology
Low-Temperature Curing Technology

Production Specifications

Thickness Range	0.20 - 5.0mm
Width Range	Max. 2700mm
Alloy	1050, 1060, 3003, 3004, 3105, 5052
Paint System	PE, SMP, PVDF etc
Color Options	RAL card color or as the sample
