| ブランド名: | JERO |
| モデル番号: | JA3 |
| MOQ: | 10トン |
| 価格: | 2800-3200USD/TON |
| 支払い条件: | L/C、T/T、ウェスタンユニオン、マネーグラム |
| 補給能力: | 月額2200トン |

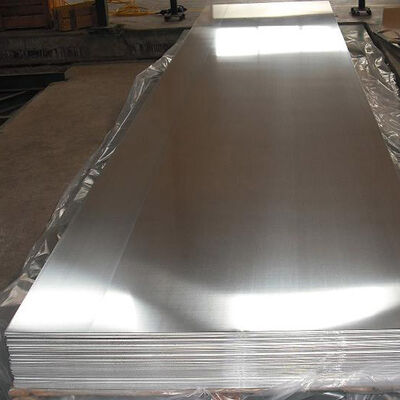

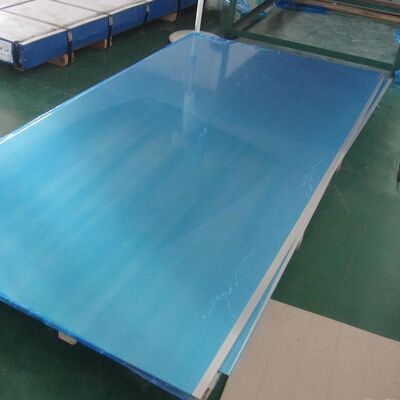

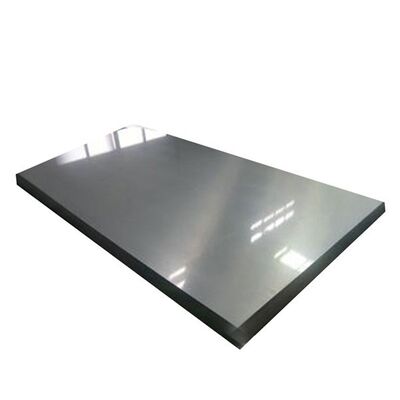

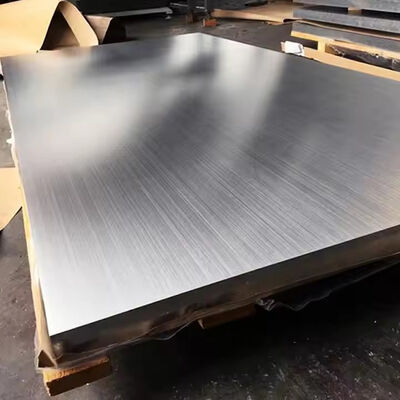

corrosion resistant aluminum alloy 5052 plate aluminum Al-Mg alloy material
5052 aluminum is a versatile premium-grade material suitable for a wide range of applications. Although
the metal is not heat treatable, magnesium and chromium — the two most prevalent alloying element
significantly increase the aluminum’s strength, durability, and corrosion resistance.
Please allow us show you our 5052 Alloy Sample, it is our widest plate 4300mm.
Specification: 260×4300×5200mm
Application:Mold or Assembly Chassis of machine
Manufacturing Process: Casting, Heating, Rolling, Stretching, Sawing
Alloy:5052-H112
Our Company
♦ We have implemented standardized processes to enhance work efficiency, reduce confusion,
minimize errors, and boost overall productivity.
♦ A comfortable and well-lit work environment, combined with a reasonably arranged office layout,
fosters a positive work attitude, healthy interpersonal relationships, and sustained team growth
motivation, while enhancing team cohesion and a sense of belonging.
Our Sampes
For oversize sheet, we use Flat Rack Container
1) We use suitable securing material, such as wooden blocks, steel straps, and ratchet tie-downs to
firmly fix the aluminum plates to the flat rack.
2) To prevent possible exposure to seawater or rain, we cover the entire cargo with waterproof tarps.
3) We make sure these sheets are loaded with a low and evenly distributed center of gravity to avoid
tilting during the transportation.
Key properties and benefits
• 5052 aluminum’s most notable advantages are its weldability, formability, strength, durability, and
thermal conductivity.
• 5052 aluminum’s excellent weldability ensures strong bonds with excellent structural integrity. This
also helps simplify the assembly process in construction and manufacturing. 5052 aluminum’s high
formability allows the metal to be shaped into precise, complex shapes for a wide range of applications.
| 5052 Aluminum Material Mechanical Properties | ||||||
| Alloy & Temper | Thickness (inch) | Tensile Strengths – ksi | ||||
| ULTIMATE | YIELD | Elongation % min in 2in or 4D | ||||
| Min | Max | Min | Max | |||
| 5052-H32 | .009-.012 | 28 | 35 | 25 | 25 | 5 |
| .013-.019 | 28 | 35 | 25 | 25 | 7 | |
| .020-.031 | 28 | 35 | 25 | 25 | 8 | |
| .032-.050 | 28 | 35 | 25 | 25 | 10 | |
| .051-.113 | 28 | 35 | 25 | 25 | 11 | |
| .114-.161 | 28 | 35 | 25 | 25 | 12 | |
| .162-.249 | 28 | 35 | 25 | 25 | 14 | |
| .250-.499 | 28 | 35 | 25 | 25 | 16 | |
| .500-1.00 | 28 | 35 | 25 | 25 | 18 | |
Applications for 5052 aluminum sheet
Because it’s much stronger than other popular alloys and has greater corrosion resistance, 5052
aluminum is ideal for marine industries, chemical applications, and electronics. Its uses include:
* Fuel tanks
* Truck-trailer side panels and cabs
* Road signs
* Kitchen cabinets
* Small boats
Frequently Asked Questions (FAQs)
1)What are the characteristics of 5052 aluminum vs. 6061 aluminum?
5052 and 6061 are likely the two most widely used aluminum grades. Both are lightweight, offering
strong corrosion resistance and high tensile strength, but which is “best” depends on the requirements
of the application.5052 is easier to bend and form without cracking, while 6061 can be extruded into
various shapes and strengthens with heat treatment.
