| Nome da marca: | JERO |
| Número do modelo: | JA42 |
| Quantidade mínima: | 7 toneladas |
| Preço: | US$3200-3300 Per Ton |
| Condições de pagamento: | L/C, T/T, Western Union, MoneyGram |
| Capacidade de fornecimento: | 3000 toneladas por mês |
| Attribute | Value |
|---|---|
| Type | 3104 aluminum coil |
| Thickness | 0.28mm |
| Alloy | 3104 |
| Temper | H19 |
| Application | Pop-top Can Body |
| Trade terms | CIF, CNF, FOB, EXW |

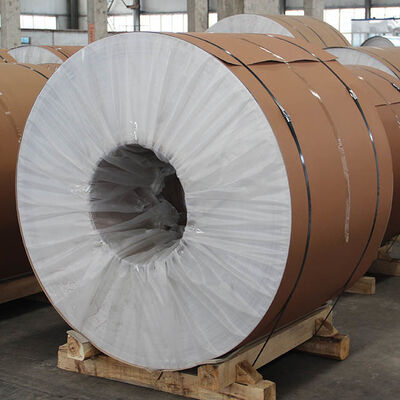

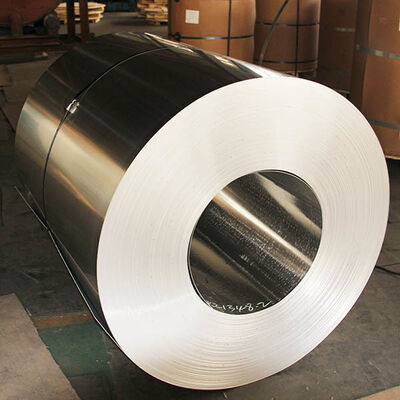

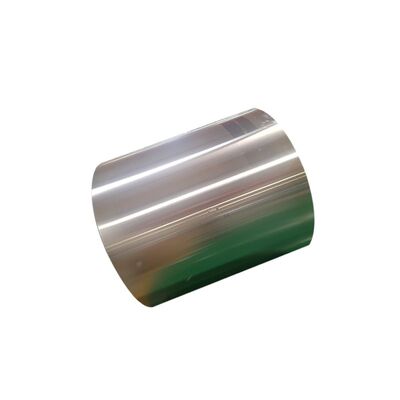

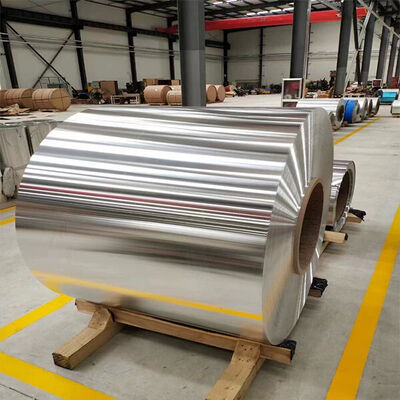

0.28mm 3104 H19 Aluminum Alloy Coil Used For Pop-top Can Body
3104 aluminum plate can be called 3104 aluminum magnesium manganese plate alloy. It is a 3 series anti-rust aluminum plate alloy. Its main alloy components are magnesium and manganese.
Can Body:
H19 (Extra Hard) (Most common)
H38 (Alternative for thinner designs)
The tensile strength of 3104 H19 aluminum coil can reach high values in standard tests. This characteristic ensures that can bodies maintain their shape and integrity under internal pressure (such as gas pressure) and external impact (such as vibrations during transport).
The natural oxidation layer of aluminum gives 3104 H19 materials excellent corrosion resistance when in contact with liquids, especially acidic and alkaline substances. This prevents food or beverages from deteriorating, thereby extending their shelf life.
The lightweight nature of aluminum is one of its significant advantages. Utilizing 3104 H19 aluminum coil can significantly reduce the overall weight of the final product. This not only enhances transportation efficiency but also lowers storage and sales costs, leading many businesses to opt for aluminum cans as packaging.
| Property | 3104 | 3004 |
|---|---|---|
| Strength | Higher (H19 yield ≥310MPa) | Slightly lower (H19 yield ~270-290MPa) |
| Formability | Superior deep-drawing capability (earing <3%) | Better for complex stamping (e.g., end curling) |
| Microstructure | Higher Mn content, controlled texture | More uniform grain structure |
| Typical Thickness | Body: 0.10-0.29mm | End/Lid: 0.20-0.23mm |
| Recyclability | Higher recycled content (>80%) | Slightly lower (~70%) |
| Product | Thickness (mm) | Width (mm) | Length (mm) |
|---|---|---|---|
| Thick sheets | 6～260 | 800～4,300 | 1000～38,000 |
| Thin sheets | 0.2～6 | 1000～2,800 | 1000～12,000 |
| Hot rolled coils | 1.5～12 | 1050～2,900 | ～ |
| Cold rolled coils | Min0.1 | 1000～2,650 | ～ |
| Code | Name | Brand |
|---|---|---|
| A | aluminum ignot melting furnace | GAUTSCHI (Switzerland) |
| B | 4 continuous hot rolling mills | SMS Group (Germany) |
| C | 2800mm width single stand cold rolling mill | SMS Group (Germany) |
| D | all automatic three-dimensional elevated warehouse | Dematic (USA) |
