Name: 3003 3004 Aluminium Alloy Coil High Wind Load Resistant For Curtain Wall
Brand: Qingdao Jero Steel Co., Ltd.
SKU: JA36
Price: 3,400.00 USD
Availability: InStock

Home > Products > Aluminum Alloy Coil >

3003 3004 Aluminium Alloy Coil High Wind Load Resistant For Curtain Wall

3004 Aluminium Alloy Coil

3003 Aluminium Alloy Coil

Curtain Wall Aluminium Alloy Coil

Place of Origin:

HENAN, CHINA

Brand Name:

JERO

Certification:

IATF 16949 IRIS CE ISO ABS DNV

Model Number:

JA36

Chat Now

Request A Quote

Product Details

Type:

Aluminum Alloy Coil

Thickness:

1-6mm

Alloy:

3105

Temper:

O/H14/H16/H24/H26

Surface:

Bright Finish

Trade Terms:

CIF,CNF,FOB,EXW

Highlight:

3004 Aluminium Alloy Coil

3003 Aluminium Alloy Coil

Curtain Wall Aluminium Alloy Coil

Payment & Shipping Terms

Minimum Order Quantity

7 TONS

Price

US$3200-3600 Per Ton

Packaging Details

Seaworthy Export Package

Delivery Time

20-30 working days

Payment Terms

L/C,T/T,Western Union,MoneyGram

Supply Ability

3000 TONS PER MONTH

ASTM B209 3003 H22 H24 Diamond Aluminum Sheet Coil Stock 3003 Aluminum Coil

Chat Now

1xxx Series Checkered Embossed Aluminum Coil 1100

Chat Now

ASTM B209 AA5251 5251 Alloy Aluminum Coil Chinese Supplier

Chat Now

EN573 3000 Grade 3004 Aluminium Coil EN AW 3004 Sheet Coil For Packages

Chat Now

86-0532-8787-6524

sales@jero-steel.com

86-0532-8787-6520

Chat Now

Product Description

3003 3004 Aluminium Alloy Coil - High Wind Load Resistant For Curtain Wall

High wind-load resistance 3003 3004 aluminum alloy coil specifically designed for curtain wall applications, featuring excellent durability and minimal maintenance requirements.

Product Specifications

Attribute	Value
Type	Aluminum alloy coil
Thickness	1-6mm
Alloy	3105
Temper	O/H14/H16/H24/H26
Surface	Bright finish
Trade terms	CIF, CNF, FOB, EXW

Product Description

Aluminum material engineered for curtain wall systems, featuring a natural oxide layer combined with PVDF/anodized coatings that resist UV and salt corrosion. Delivers 25+ years of service life with minimal maintenance requirements.

Our Company

Standardized processes enhance work efficiency, reduce errors, and boost productivity
Optimized work environment fosters positive attitude and team cohesion
Professional team ready for cooperation with your company

Our Workshop

World-class equipment from GAUTSCHI (Switzerland) and SMS Group (Germany)
Specialized in high-quality aluminum alloy coils (1050, 1060, 1100, 3003, 3004, 3104, 5052, 6061)
Efficient internal management and standardized production processes

Automatic Aluminum Coil Wrapping Machine

Reduced manual work with faster, easier packaging
Precise control for consistent wrapping results
Secure packaging for safe transportation

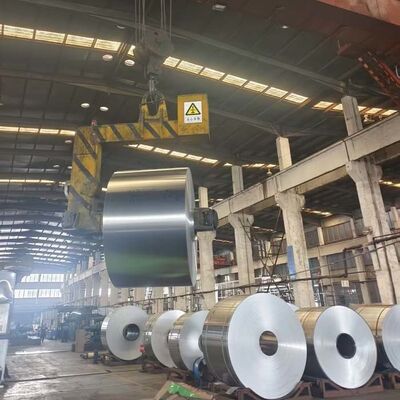

All Automatic Three-dimensional Elevated Warehouse

Smart storage with temperature monitoring for hot and cold rolled coils
Automated transport with optimized routing
Efficient material handling for production flow

Alloy Ingot Storage Area

Neatly stacked materials for easy tracing and handling, ready for production use.

Ocean Shipping

Cushioning materials and specialized lashing straps for protection
Non-slip wooden blocks to prevent movement during transit
Waterproof packaging with desiccants to prevent moisture damage

Alloy Material Selection Guide

Alloy	Temper	Tensile Strength	Key Feature	Typical Use
3003	H14/H24	145-185 MPa	Cost-effective	Basic cladding
3004	H34	200-240 MPa	High wind-load resistance	Coastal areas
5052	H32	230-280 MPa	Excellent corrosion resistance	Industrial zones

Key Advantages

✓ Lightweight & High Strength - Density: 2.7g/cm³ (1/3 of steel), reducing structural load. 5052-H32: Tensile strength ≥230MPa; 6061-T6: Up to 310MPa

✓ Superior Weather Resistance - Natural oxide layer resists UV; Anodizing triples durability. 5,000-hour salt spray test (GB/T 10125 compliant)

✓ Design Flexibility - Roll-forming, bending, stamping (min. bend radius = thickness). Supports parametric curved designs (e.g., double-curvature walls)

Diverse Surface Finishes

Finish	Features	Applications
PVDF Coating	20-year color retention	Landmarks (e.g., Shanghai Tower)
Anodizing	Metallic finish, hardness ≥300HV	Premium office buildings
Wood Grain	Natural texture, -40~80℃ range	Cultural/retail projects

✓ Energy Efficiency - Solar reflectance ≥80% (reduces cooling costs). 100% recyclable; recycled aluminum uses 95% less energy

Global Case Studies

✦ Shanghai World Financial Center: 5052-H32, 3.0mm PVDF-coated

✦ Burj Khalifa, Dubai: 6061-T6 frames + 3004 panels (withstands Category 8 winds)

✦ Beijing Daxing Airport: 2.5mm anodized double-curved panels
