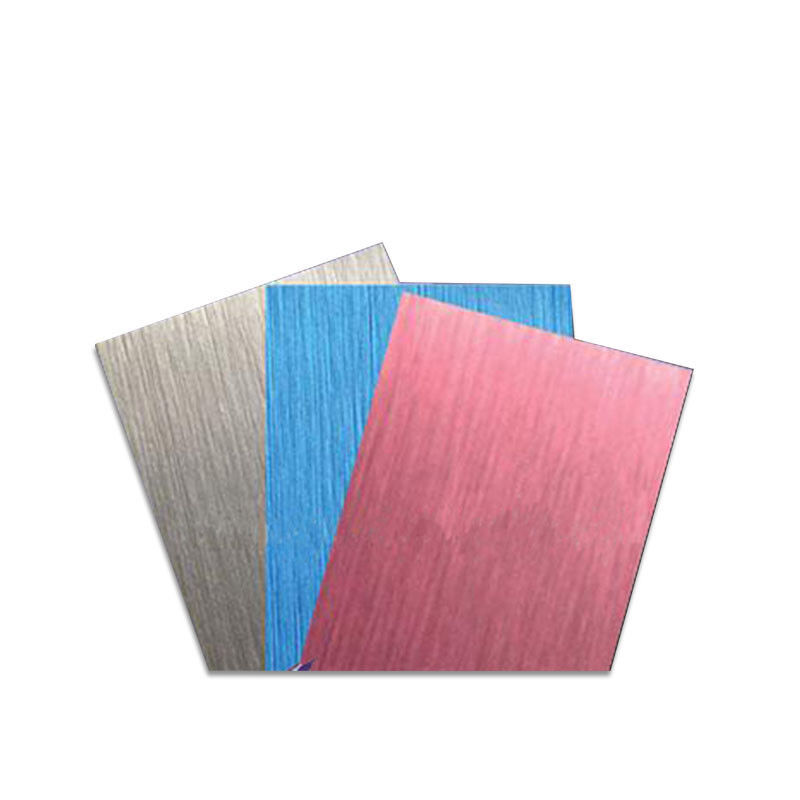

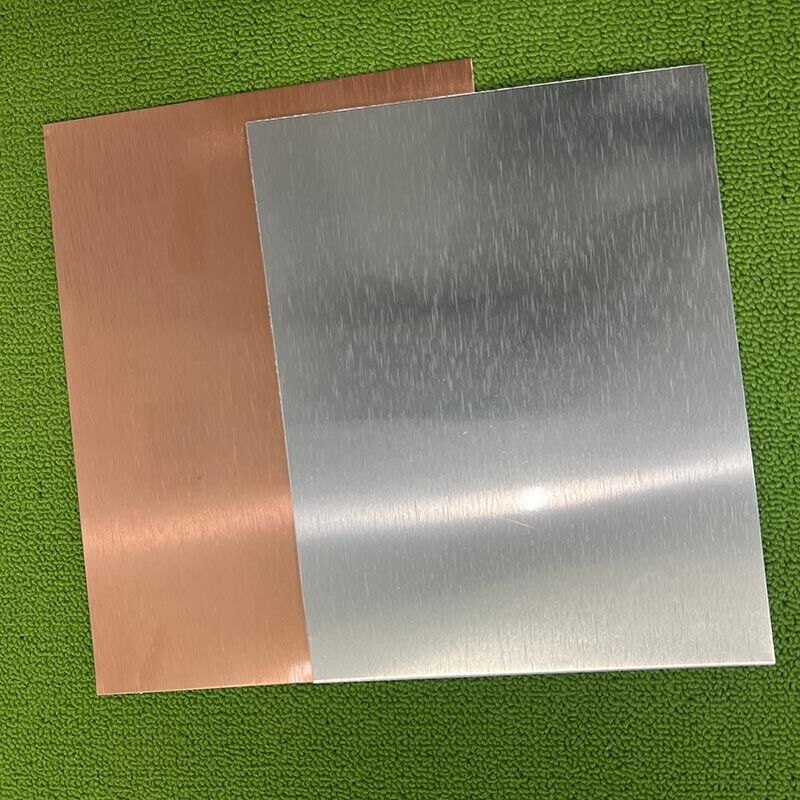

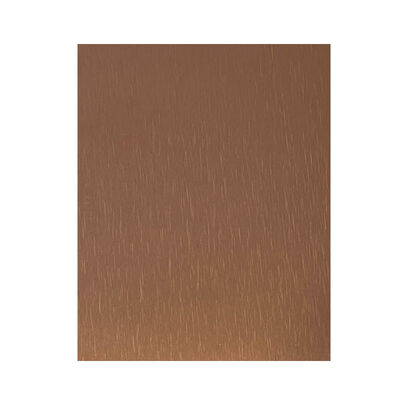

Excellent Decorative Property Brushed Surface Color Coated Aluminum Coil
A pre-finished aluminum coil featuring a mechanically or chemically brushed surface with
uniform linear or random patterns, combined with durable color coatings for enhanced
aesthetics and functionality.
Key Features
a) Surface Finishes
Linear brushing (unidirectional grain)
Random brushing (non-directional pattern)
b) Coating Systems
Polyester (PE) for indoor applications
PVDF for superior outdoor durability
Performance Advantages
• Excellent Decorative Properties

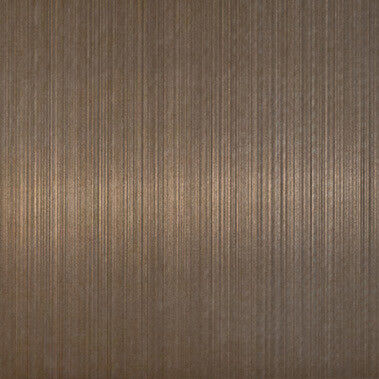

Brushed Texture: A fine metallic grain pattern achieved through mechanical or chemical
brushing, enhancing visual appeal for modern, minimalist, or industrial designs.
Color Coating: PVDF (polyvinylidene fluoride) or PE (polyester) coatings offer rich colors
(e.g., wood grain, stone patterns, solid colors) and UV resistance, preventing fading over time.
• Lightweight & High Strength
Low Density (~2.7 g/cm³): ~1/3 lighter than steel, reducing structural load and installation/transport costs.
High Strength: Alloying (e.g., with magnesium/silicon) and work hardening achieve tensile strengths
of 150–300 MPa, suitable for structural parts.
• Corrosion Resistance
Natural Oxide Layer: Aluminum oxide (Al₂O₃) resists atmospheric and rainwater corrosion.
Protective Coating: PVDF coatings withstand acids, alkalis, and UV rays, ideal for coastal/industrial
areas (20+ years lifespan).
• Easy Processability
Flexibility: Easily cut, stamped, or bent (e.g., for AC housings, curtain walls).
Welding/Riveting: Certain grades (e.g., 3003, 5052) are weldable, compatible with multiple joining methods.
• Eco-Friendliness & Sustainability
Recyclability: Aluminum is >90% recyclable, with recycled production using just 5% of original energy.
Non-Toxic Coatings: PVDF coatings are heavy-metal-free, compliant with RoHS/REACH standards.
Typical Applications
♦ Architectural cladding (elevator interiors, decorative trims)
♦ High-end appliance panels (refrigerators, ovens)
♦ Consumer electronics (laptop casings, audio equipment)
♦ Interior design elements (cabinet surfaces, space dividers)
Company Advantages
Advanced Equipment
• German SMS Group fully automated coating lines with ±0.01mm thickness precision,
Line Speed: 120m/min (20% faster than industry average data)
• MES system enables real-time production monitoring with ≥99.3% product qualification rate
• Multi-spectral imaging detects micro-defects as small as 0.02mm² with 99.8% recognition accuracy
Technology Patents
♦ Anti-Static Color Aluminum Coil and Continuous Production System
♦ Chromium-Free Passivation Solution for Color-Coated Aluminum Coils and Preparation Method
♦ Production Process for High Solar-Reflectance Color Aluminum Coils
♦ Method for Preparing 3D Wood Grain Aluminum Coil Based on Nanoimprint Technology
♦ Low-Temperature Curing Technology
