Name: PVDF Imitation Brushed Aluminum Coil Roll Straight Line Color Coated Aluminum Coil
Brand: Qingdao Jero Steel Co., Ltd.
SKU: JC25
Price: 3.00 USD
Availability: InStock

Home > Products > Brushed Aluminum Coil >

PVDF Imitation Brushed Aluminum Coil Roll Straight Line Color Coated Aluminum Coil

Imitation Brushed Aluminum Coil

Brushed Aluminum Coil Roll

Straight Line Color Coated Aluminum Coil

Place of Origin:

CHINA

Brand Name:

JERO

Certification:

SONCAP SABER SGS

Model Number:

JC25

Chat Now

Request A Quote

Product Details

Type:

Color-coated Aluminium Coil

Base Material:

3003/5005

Surface:

Imitation Brushed Surface

Coating:

PVDF

Front Coating:

20-25 Microns/as Your Request

Trade Terms:

FOB/CIF/CFR/EXW

Highlight:

Imitation Brushed Aluminum Coil

Brushed Aluminum Coil Roll

Straight Line Color Coated Aluminum Coil

Payment & Shipping Terms

Minimum Order Quantity

7 tons

Price

3,300-3,400USD/TON

Packaging Details

Seaworthy Standard Export Package

Delivery Time

25-30 working days

Payment Terms

L/C,T/T,Western Union,MoneyGram

Supply Ability

3,000 TONS PER MONTH

PVDF Coating Copper Silver Brushed Aluminum Coil / Purple Pre Coated Aluminium Sheet

Chat Now

1000 / 3000 Series Brushed Aluminum Coils PVDF Coating For Architectural Cladding

Chat Now

PVDF Brushed Surface Coated Aluminum Coil For High Rise Building Facades

Chat Now

Brushed Surface Color Coated Aluminum Coil Decorative Property

Chat Now

86-0532-8787-6524

sales@jero-steel.com

86-0532-8787-6520

Chat Now

Product Description

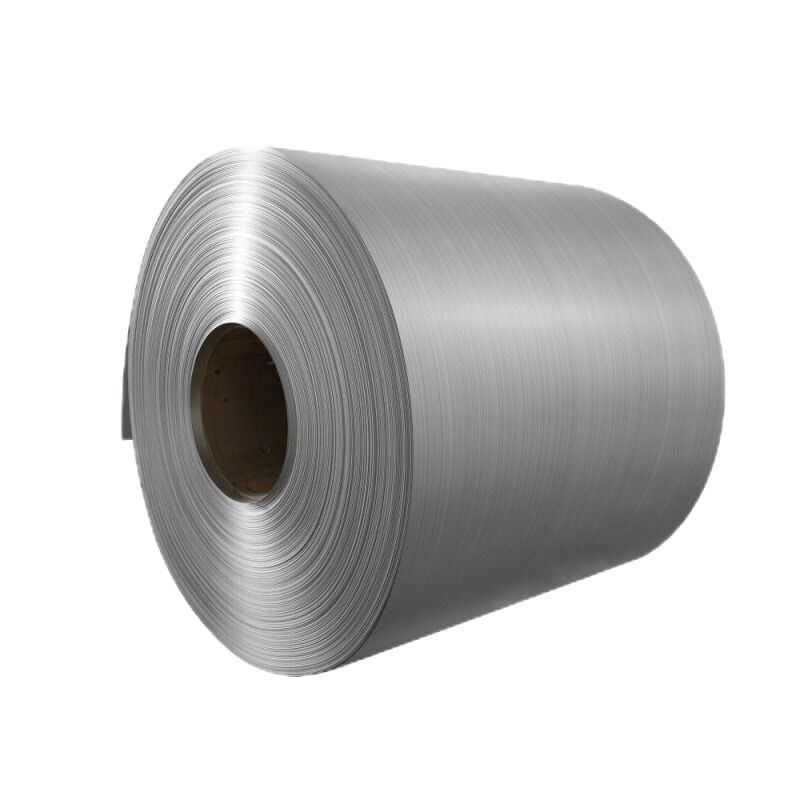

PVDF Imitation Brushed Aluminum Coil Roll

Straight Line Color Coated Aluminum Coil

Product Overview

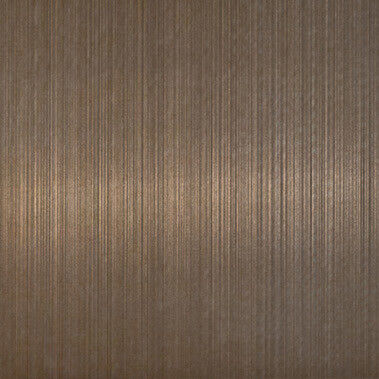

A premium decorative material created through precision mechanical/chemical processes to produce uniform parallel linear textures on pre-painted aluminum coils. This innovation replicates stainless steel brushing effects while maintaining aluminum's lightweight advantages.

Attribute	Value
Type	Color-coated aluminium coil
Base Material	3003/5005
Surface	Imitation Brushed surface
Coating	PVDF
Front coating	20-25 microns/as your request
Trade Terms	FOB/CIF/CFR/EXW

Manufacturing Facility

Professional color coated aluminum material manufacturer with 3 production lines for coil and 2 lines for sheet, with maximum width of 2700mm
Clear internal management and standardized processes ensure smooth, efficient production

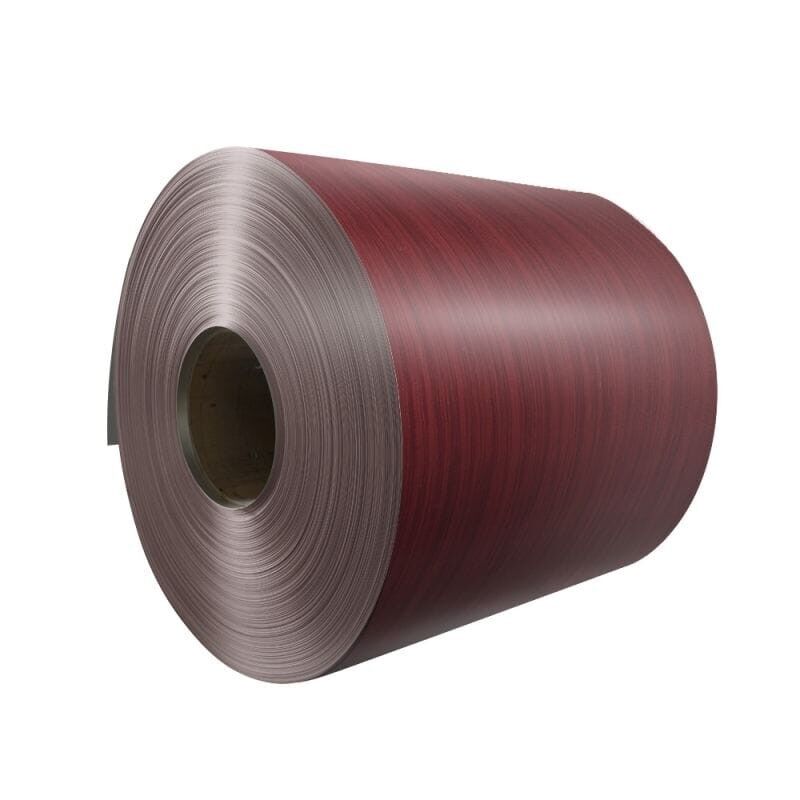

Main products include color coated aluminum coil, wood grain coated aluminum coil, stone texture coated aluminum coil, Al-Mn-Mg roof aluminum coil, and mirror finish coated aluminum coil

We also produce curtain wall aluminum veneer, aluminum honeycomb panel, and heat transfer printed aluminum coil.

Quality Control Measures

Bending and hardness testing for every batch of raw material to ensure alloy temper meets requirements
Online inspection systems monitor key parameters during production (coating thickness, uniformity, adhesion)
Pre-delivery sample testing including grid testing, impact testing, and bending testing
MTC provided for every batch with maintained test records

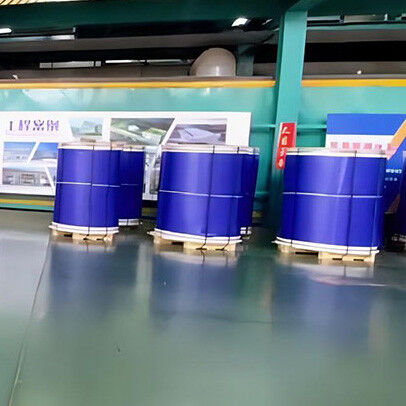

Packaging & Shipping

Cushioning materials between coil and wall with specialized lashing straps
Non-slip wooden blocks under each coil to prevent movement during transit
Waterproof layer inside package with desiccants to protect from moisture

Aluminum Alloy Substrates

3003-H24

Composition: Al-Mn series (Mn 1.0-1.5%)
Advantages: Excellent formability (elongation ≥10%), better weather resistance than 5005, ideal for outdoor applications
Limitations: Moderate strength (tensile strength 145-195 MPa)

5005-H32

Composition: Al-Mg series (Mg 0.5-1.1%)
Advantages: Superior corrosion resistance (especially marine environments), more uniform anodizing results

Performance Comparison

Property	3003-H24 Substrate	5005-H32 Substrate
Strength	Moderate (YS 115MPa)	Moderate (YS 125MPa)
Corrosion Resistance	Good (requires coating)	Excellent (inherent)
Formability	Excellent (deep draw)	Good (controlled bend)
Cost	Lower	Moderate
Coating Recommendation	PE/PVDF general	PVDF for premium applications

Primary Applications

Architectural Cladding
Skyscraper vertical accents (height-enhancing textures)

Unitized curtain wall sunshades (1.5-2.5mm thickness)

Dynamic light-reflective facades (texture angle engineering)
Premium Appliance Panels
White goods: Refrigerator doors (antibacterial versions)

Electronics: Smart speaker housings (0.8mm thin-gauge)

Company Advantages

Advanced Equipment

German SMS Group fully automated coating lines with ±0.01mm thickness precision, Line Speed: 120m/min (20% faster than industry average)
MES system enables real-time production monitoring with ≥99.3% product qualification rate
Multi-spectral imaging detects micro-defects as small as 0.02mm² with 99.8% recognition accuracy

Technology Patents

Anti-Static Color Aluminum Coil and Continuous Production System
Chromium-Free Passivation Solution for Color-Coated Aluminum Coils and Preparation Method
Production Process for High Solar-Reflectance Color Aluminum Coils
Method for Preparing 3D Wood Grain Aluminum Coil Based on Nanoimprint Technology
Low-Temperature Curing Technology
