1000 / 3000 Series Brushed Aluminum Coils PVDF Coating For Architectural Cladding

1000 / 3000 Series Brushed Aluminum Coils PVDF Coating For Architectural Cladding

3000 Series PVDF Coated Aluminum Coil

3000 Series Brushed Aluminum Coils

Brushed Aluminum Coils PVDF Coating

Place of Origin:

CHINA

Brand Name:

JERO

Certification:

QM BIS SONCAP SABER SGS

Model Number:

JC36

Chat Now
Request A Quote
1000 / 3000 Series Brushed Aluminum Coils PVDF Coating For Architectural Cladding 1000 / 3000 Series Brushed Aluminum Coils PVDF Coating For Architectural Cladding 1000 / 3000 Series Brushed Aluminum Coils PVDF Coating For Architectural Cladding 1000 / 3000 Series Brushed Aluminum Coils PVDF Coating For Architectural Cladding
Product Details
Type:
Brushed Aluminum Coil
Base Material:
1000/3000 Series
Surface:
Brushed Surface
Coating:
PVDF
Front Coating:
20-25 Microns/as Your Request
Trade Terms:
FOB/CIF/CNF/EXW
Highlight:

3000 Series PVDF Coated Aluminum Coil

,

3000 Series Brushed Aluminum Coils

,

Brushed Aluminum Coils PVDF Coating

Payment & Shipping Terms
Minimum Order Quantity
7 tons
Price
3,400-3,700USD/TON
Packaging Details
Seaworthy Standard Export Package
Delivery Time
20-30 working days
Payment Terms
L/C,T/T,Western Union,MoneyGram
Supply Ability
3,500 TONS PER MONTH
RELATED PRODUCTS
Good price PVDF Coating Copper Silver Brushed Aluminum Coil / Purple Pre Coated Aluminium Sheet online

PVDF Coating Copper Silver Brushed Aluminum Coil / Purple Pre Coated Aluminium Sheet

Chat Now
Good price 1000 / 3000 Series Brushed Aluminum Coils PVDF Coating For Architectural Cladding online

1000 / 3000 Series Brushed Aluminum Coils PVDF Coating For Architectural Cladding

Chat Now
Good price PVDF Brushed Surface Coated Aluminum Coil For High Rise Building Facades online

PVDF Brushed Surface Coated Aluminum Coil For High Rise Building Facades

Chat Now
Good price Brushed Surface Color Coated Aluminum Coil Decorative Property online

Brushed Surface Color Coated Aluminum Coil Decorative Property

Chat Now
CONTACT US
86-0532-8787-6524
sales@jero-steel.com
86-0532-8787-6520
Chat Now
Product Description

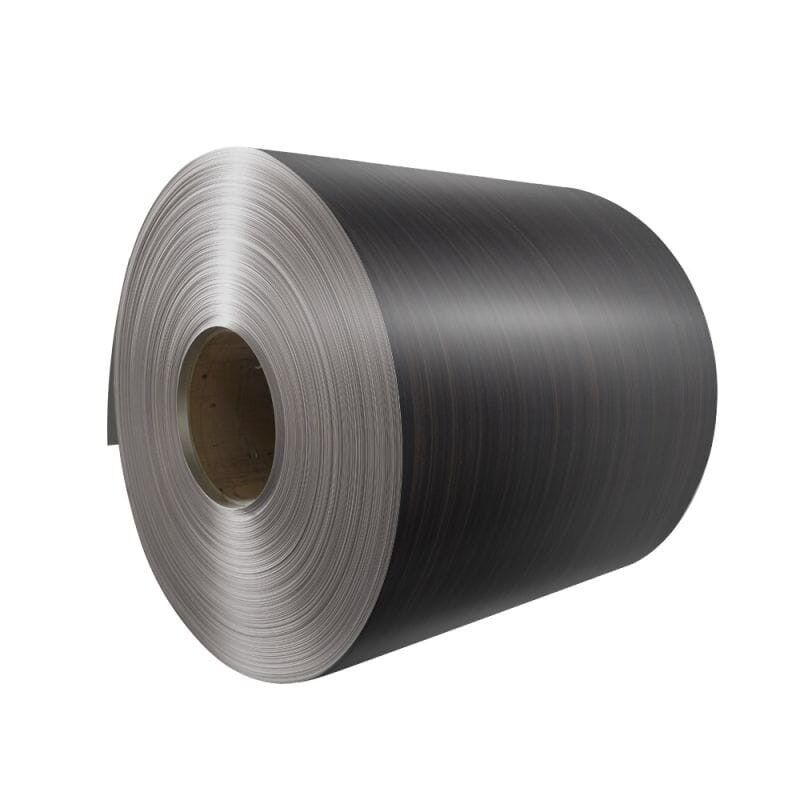

1000 / 3000 Series Brushed Aluminum Coils with PVDF Coating

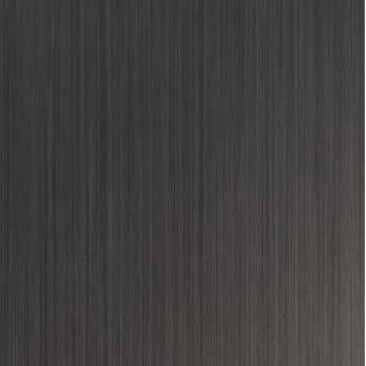

Premium architectural aluminum material featuring a sophisticated dark grey base with elegant silver brushed texture. This refined finish combines contemporary aesthetics with high-performance durability for both interior and exterior applications.
1000 / 3000 Series Brushed Aluminum Coils PVDF Coating For Architectural Cladding 0
Product Specifications
Attribute Value
Type Pre-coated aluminium coil
Base Material 1000/3000 series
Surface Brushed surface
Coating PVDF
Front coating 20-25 microns/as your request
Trade Terms FOB/CIF/CNF/EXW
Key Features
  • Premium Surface Finish: Deep charcoal grey substrate (RAL 7016 equivalent), precision directional brushing (Ra 0.4-0.8μm), optional matte or satin clear coat protection
  • Enhanced Performance: PVDF or FEVE coating options available, 25+ years color retention warranty, excellent fingerprint resistance
  • Technical Specifications: Alloy: 3003/5052 (H14 or H24 temper), Thickness: 0.5-3.0mm, Standard width: 1000-2700mm, Fire Rating: A2-s1,d0 (EN 13501-1)
Material Advantages Comparison
Parameter Brushed Aluminum Brushed Stainless
Cost Efficiency $$$ $$$$
Maintenance Low Medium
Color Options Wide range Limited
Applications
  • Architectural Cladding: Modern facade systems, column covers and soffits
  • Interior Design: Luxury retail fixtures, elevator cabin interiors, feature wall panels
  • Special Applications: Yacht and aircraft interiors, premium appliance surfaces
Manufacturing Excellence
Advanced Production Capabilities
  • German SMS Group fully automated coating lines with ±0.01mm thickness precision
  • Line Speed: 120m/min (20% faster than industry average)
  • MES system enables real-time production monitoring with ≥99.3% product qualification rate
  • Multi-spectral imaging detects micro-defects as small as 0.02mm² with 99.8% recognition accuracy
1000 / 3000 Series Brushed Aluminum Coils PVDF Coating For Architectural Cladding 1
Production Capacity
  • 3 production lines for coil, 2 lines for sheet with Max Width 2700mm
  • Clear internal management and standardized processes for efficient production
  • Main products include color coated, wood grain, stone texture, and mirror finish aluminum coils
  • Additional products: curtain wall aluminum veneer, aluminum honeycomb panel, heat transfer printed aluminum coil
Quality Assurance
Comprehensive quality control measures ensure every batch meets the highest industry standards for performance and durability.
  • Test bending and hardness property for every batch raw material to ensure Alloy Temper meets requirements
  • Online inspection systems monitor key parameters during production (coating thickness, uniformity, adhesion)
  • Pre-delivery testing includes grid testing, impact testing, and bending testing
  • MTC provided for every batch product with maintained test records
1000 / 3000 Series Brushed Aluminum Coils PVDF Coating For Architectural Cladding 2 1000 / 3000 Series Brushed Aluminum Coils PVDF Coating For Architectural Cladding 3 1000 / 3000 Series Brushed Aluminum Coils PVDF Coating For Architectural Cladding 4 1000 / 3000 Series Brushed Aluminum Coils PVDF Coating For Architectural Cladding 5

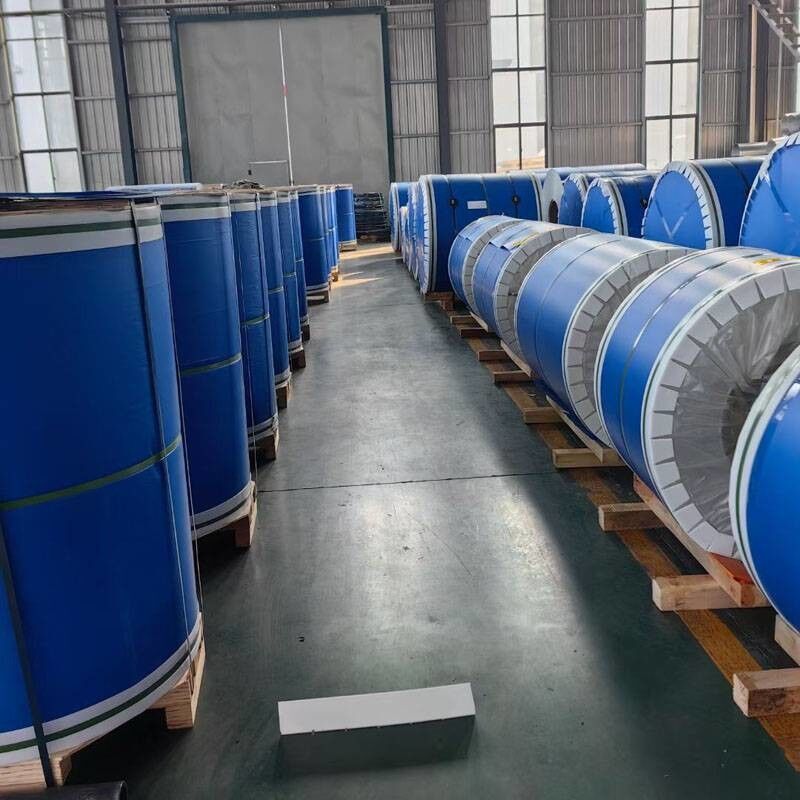

Packaging & Shipping
  • Cushioning materials between coil and wall with specialized lashing straps
  • Non-slip wooden blocks under each coil to prevent movement
  • Waterproof layer inside package with desiccants in container for moisture protection
1000 / 3000 Series Brushed Aluminum Coils PVDF Coating For Architectural Cladding 6 1000 / 3000 Series Brushed Aluminum Coils PVDF Coating For Architectural Cladding 7 1000 / 3000 Series Brushed Aluminum Coils PVDF Coating For Architectural Cladding 8
