5052 H32 Flat Aluminum Alloy Sheet 800mm-4300mm Width High Strength

5052 H32 Flat Aluminum Alloy Sheet

Aluminum Alloy Sheet 800mm

Aluminum Alloy Sheet 4300mm

Place of Origin:

CHINA

Brand Name:

JERO

Certification:

CE ISO IATF 16949 IRIS EN 45545

Model Number:

JA3

Chat Now

Request A Quote

Product Details

Type:

Flat Aluminum Alloy Sheet

Alloy:

5052

Temper:

H32

Width:

800mm-4300mm

Length:

As Your Request

Surface:

PVC Film Protection

Usage:

Truck-trailer Side Panels And Cabs

Highlight:

5052 H32 Flat Aluminum Alloy Sheet

Aluminum Alloy Sheet 800mm

Aluminum Alloy Sheet 4300mm

Payment & Shipping Terms

Minimum Order Quantity

10 TONS

Price

2800-3200USD/TON

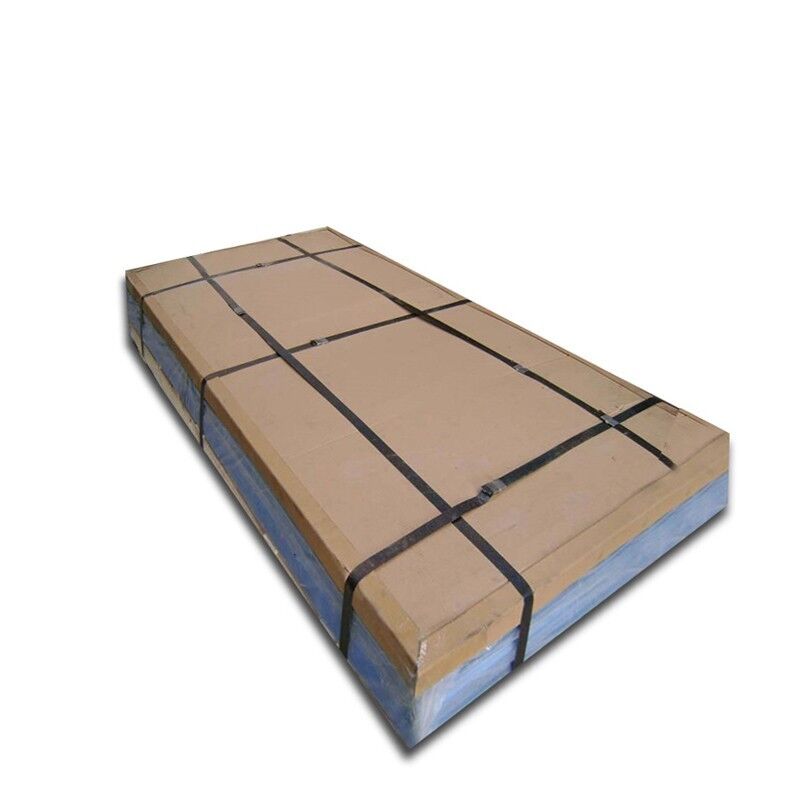

Packaging Details

STANDARD EXPORT PACKAGE

Delivery Time

25-40 DAYS

Payment Terms

L/C,T/T,Western Union,MoneyGram

Supply Ability

2200 TONS PER MONTH

5052 H32 Aluminum Plate High Strength Aluminum Sheet Metal For Trailer

Chat Now

EN AW AA5052 Aluminum Coil Corrosion Resistant ASTM B209 EN 485-2

Chat Now

5052 H32 Flat Aluminum Alloy Sheet 800mm-4300mm Width High Strength

Chat Now

Corrosion Resistant 5000 Series 5052 Aluminum Alloy Plate For Automobile Industry

Chat Now

86-0532-8787-6524

sales@jero-steel.com

86-0532-8787-6520

Chat Now

Product Description

5052 H32 Flat Aluminum Alloy Sheet

Available in widths from 800mm to 4300mm with high strength properties

Premium 5052 H32 Aluminum-Magnesium Alloy Sheet

A durable material with high strength and excellent corrosion resistance

5052 aluminum is a versatile premium-grade material suitable for a wide range of applications. Although the metal is not heat treatable, magnesium and chromium – the two most prevalent alloying elements – significantly increase the aluminum's strength, durability, and corrosion resistance. The increased tensile strength and yield strength allows the alloy to handle high levels of stress and stand up to the harshest environmental conditions.

Key Properties and Benefits

5052 aluminum's most notable properties are its weldability, formability, strength, durability, and thermal conductivity
Excellent weldability ensures strong bonds with excellent structural integrity, simplifying assembly processes in construction and manufacturing
High formability allows the metal to be shaped into precise, complex shapes for diverse applications
Ideal for deep drawing and spinning, enabling cost-effective large-scale production
As one of the higher-strength non-heat-treatable alloys, 5052 aluminum has high load-bearing capacity and resists deformation
Performs well in harsh marine environments due to strong corrosion resistance

5052 Aluminum Material Mechanical Properties

Alloy & Temper	Thickness (inch)	Tensile Strengths - ksi	ULTIMATE	YIELD	Elongation % min in 2in or 4D
5052-H32	.009-.012	Min	28	25	5
	.013-.019	Min	28	25	7
	.020-.031	Min	28	25	8
	.032-.050	Min	28	25	10
	.051-.113	Min	28	25	11
	.114-.161	Min	28	25	12
	.162-.249	Min	28	25	14
	.250-.499	Min	28	25	16
	.500-1.00	Min	28	25	18

Aluminum Material Advantages Over Other Materials

Aluminum tanker trailers transport petrochemical products including diesel, gasoline, kerosene, methanol, and ethanol
Lightweight construction with mass as little as 6 tons, allowing increased cargo capacity
No anti-rust treatment required and no concerns about rust residue or damage
Environmentally friendly material with excellent recyclability
Superior fuel economy – European Aluminum Association research shows 0.6L of gasoline saved per ton per 10km
Annual fuel savings of at least 1800L when traveling 12,000km with 5-ton weight reduction compared to steel tanks

Applications for 5052 Aluminum

Ideal for marine industries, chemical applications, and electronics due to superior strength and corrosion resistance:

Fuel tanks
Truck-trailer side panels and cabs
Road signs
Hydraulic tubes
Kitchen cabinets
Small boats

Product Samples

Frequently Asked Questions

What are the characteristics of 5052 aluminum vs. 6061 aluminum?

5052 and 6061 are two of the most widely used aluminum grades. Both are lightweight with strong corrosion resistance and high tensile strength, but the best choice depends on application requirements. 5052 is easier to bend and form without cracking, while 6061 can be extruded into various shapes and strengthens with heat treatment.

What are the characteristics of 3003 vs. 5052 aluminum?

3003 and 5052 aluminum are common aluminum alloys with similar characteristics including good corrosion resistance and inability to strengthen through heat treatment. However, 3003 uses manganese as its alloying element, while 5052 uses magnesium, giving 5052 greater strength, improved finishing characteristics, and enhanced corrosion resistance.
