| Brand Name: | JERO |
| Model Number: | JA90 |
| MOQ: | 7 tons |
| Price: | 3000-3200usd/ton |
| Payment Terms: | T/T,L/C,Western Union,MoneyGram |
| Supply Ability: | 800 tons per week |

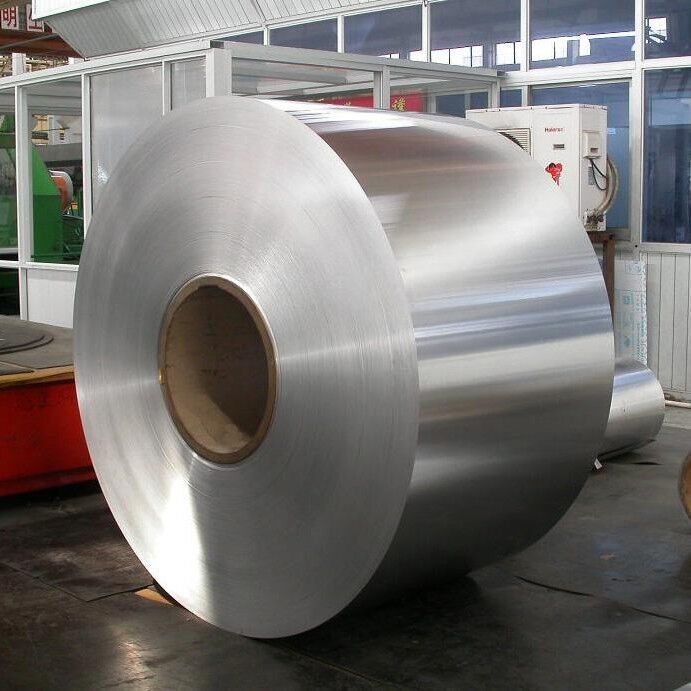

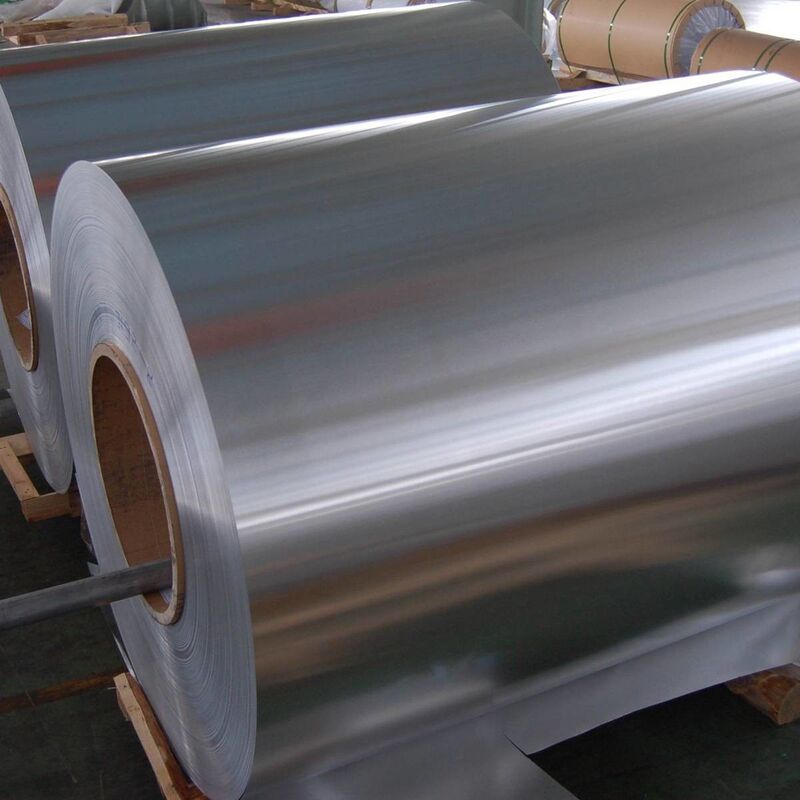

ASTM B209 5083 Aluminum Coil Aluminum Roll Used For Transportation
5083 aluminum sheet belongs to Al-Mg series alloy. It is the highest strength corrosion-resistant
alloy among practical non-heat-treated alloys. And it is suitable for welding structures. Also, it is
worth mentioning that 5083 aluminum sheet has good resistance to seawater and low-temperat
-ure characteristics. Therefore, 5083 aluminum sheet has become the most suitable choice for
marine-grade aluminum.
Mechanical Properties
| Temper |
Tensile Strength (MPa) |
Yield Strength (MPa) |
Elongation (%) |
| O | 270-345 | 125-215 | 14-18 |
| H111 | 270-345 | 125-215 | 14-18 |
| H116 | 290-360 | 215-290 | 10-14 |
Key Advantages
♦ Marine-Grade Performance
Saltwater corrosion resistance 3x better than 5052 alloy
Approved for shipbuilding by ABS/DNV/GL classifications
♦ Structural Efficiency
Specific strength comparable to mild steel at 1/3 the weight
Fatigue life 50% longer than 6061-T6 in dynamic loads
♦ Fabrication Benefits
Welding: No preheat required for thicknesses ≤25mm
Forming: Minimum bend radius = 1.5t (H111 temper)
Our Samples in the Workshop:
| Alloy/Temper | Size (mm) | Description |
| 6016-F | 8X2608xC | 26.5ton the Heaviest Hot-Rolled Coil |
| 6061-F | 1.5x1000xC | the Thinest Hot-Rolled Coil |
| 3104-H19 | 0.265x1640xC | 3104 Can Body Material Coil |
| 2024-T451 | 2.0x1850xC | 2024 Aluminum Alloy for Aviation Application |
| 5454-H32 | 8x2800xC | 2800mm the Widest Hot-Rolled Coil |
| 3004-H24 | 0.7x2650xC | 2650mm super Wide Cold-Rolled Coil |
Our company advantages
Technological & Production Strengths:
R&D Capabilities: Own a national-level corporate technology center and contributes to industry
standards.
Production Scale: We had an annual capacity exceeding 0.9 million tons of aluminum large-scale
rolling mills.
Production Ability: We can produce the Aluminum Plate / Coil for automobile, railway transportation,
marine, aerospace etc fields, and obtained the relevant certification.
Our factory own the world advanced equipments, include:
| Code | Name | Brand |
| A | aluminum ignot melting furnace | GAUTSCHI (Switzerland) |
| B | 4 continuous hot rolling mills | SMS Group (Germany) |
| C | 2800mm width single stand cold rolling mill | SMS Group (Germany) |
| D | all automatic three-dimensional elevated warehouse | Dematic (USA) |
