Name: 3000 Grade Alloy 3004 Aluminium Alloy Coil 3004 Coil Aluminum For Packages
Brand: Qingdao Jero Steel Co., Ltd.
SKU: JA16
Price: 2,000.00 USD
Availability: InStock

Home > Products > Aluminum Alloy Coil >

3000 Grade Alloy 3004 Aluminium Alloy Coil 3004 Coil Aluminum For Packages

3004 Aluminium Alloy Coil

Packages Aluminium Alloy Coil

3000 Grade Aluminium Alloy Coil

Place of Origin:

HENAN, CHINA

Brand Name:

JERO

Certification:

CE ISO SGS

Model Number:

JA16

Chat Now

Request A Quote

Product Details

Type:

Aluminum Alloy Coil

Standard:

ASTM B209

Temper:

O/H32/H34/H38

Surface:

Bright Finish

Alloy:

AA3004

Payment Terms:

FOB/CIF/CFR/EXW

Highlight:

3004 Aluminium Alloy Coil

Packages Aluminium Alloy Coil

3000 Grade Aluminium Alloy Coil

Payment & Shipping Terms

Minimum Order Quantity

7 TONS

Price

US$1800-2200 Per Ton

Packaging Details

Seaworthy Standard Export Package

Delivery Time

18-30 working days

Payment Terms

L/C,T/T,Western Union,MoneyGram

Supply Ability

3000 TONS PER MONTH

ASTM B209 3003 H22 H24 Diamond Aluminum Sheet Coil Stock 3003 Aluminum Coil

Chat Now

1xxx Series Checkered Embossed Aluminum Coil 1100

Chat Now

ASTM B209 AA5251 5251 Alloy Aluminum Coil Chinese Supplier

Chat Now

EN573 3000 Grade 3004 Aluminium Coil EN AW 3004 Sheet Coil For Packages

Chat Now

86-0532-8787-6524

sales@jero-steel.com

86-0532-8787-6520

Chat Now

Product Description

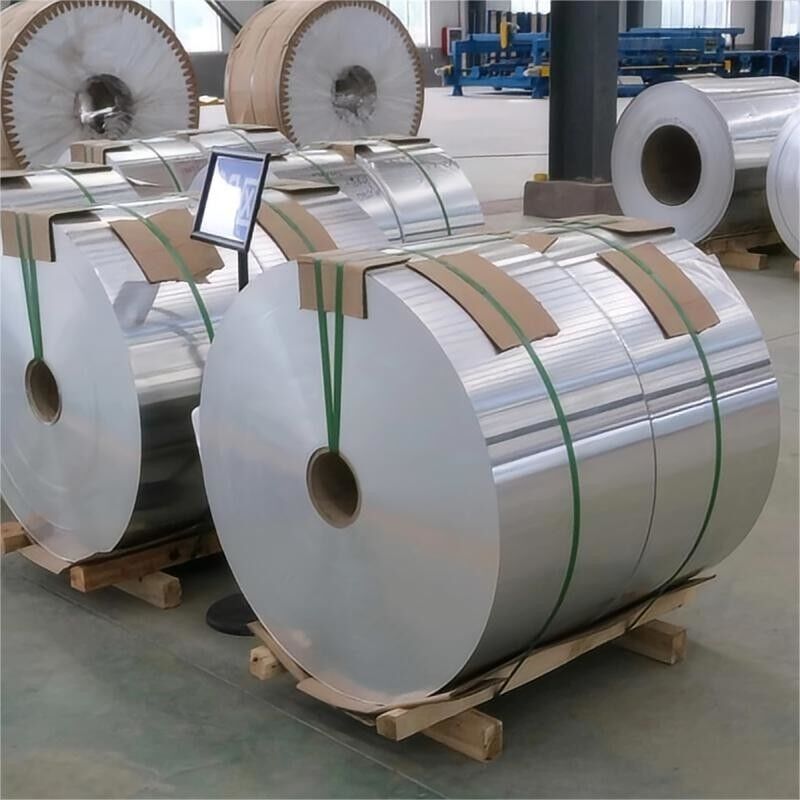

3000 Grade Alloy 3004 Aluminium Alloy Coil for Packaging

3004 aluminum alloy is a medium-strength, non-heat-treatable alloy primarily composed of manganese and magnesium. It offers better strength than pure aluminum while maintaining excellent formability, weldability, and corrosion resistance.

Key Properties

Moderate Strength: Tensile strength: 130-285 MPa (depending on temper, with H18 full-hard state offering the highest strength). Strength can be significantly improved through cold working, but it cannot be heat-treated for strengthening.
Excellent Formability: High ductility, suitable for deep drawing, stretching, and other forming processes such as beverage can bodies.
Outstanding Corrosion Resistance: Resists atmospheric, water, and chemical corrosion, particularly in humid and saline environments due to manganese and magnesium content.
Good Weldability: Compatible with conventional welding methods (MIG/TIG), making it ideal for sealed packaging containers.
Lightweight: Low density (~2.7 g/cm³), lighter than steel, reducing transportation costs.

Mechanical Properties

Temper	Tensile Strength (MPa)	Yield Strength (MPa)	Elongation (%)
O	150-180	70-100	20-25
H32	190-220	160-180	8-12
H34	210-240	180-200	6-9
H38 (Full Hard)	240-270	220-240	4-6

Packaging Industry Applications

3004 aluminum alloy is widely used in packaging due to its corrosion resistance, formability, and food safety compliance.

Beverage and Food Can Bodies

Used for beverage can bodies (beer, soda cans) and food cans for meat, vegetables, etc. 3004 sheets are deep-drawn into cylindrical can bodies, replacing 3003 alloy with higher strength due to magnesium content. Surfaces can be coated or printed for branding.

Bottle Caps and Seals

Stamped into screw caps, crown caps, and aerosol can lids with excellent sealing properties for water bottles, wine caps, cosmetics, and pharmaceuticals.

Other Packaging Containers

Used in aluminum foil laminates combined with plastic films for snack bags and pharmaceutical blister packs, as well as lightweight, recyclable trays and containers for takeout food boxes and industrial packaging.

Product Range

Product	Thickness (mm)	Width (mm)	Length (mm)
Thick Plate	6～260	800～4300	1000～38000
Thin Plate	0.2～6	1000～2800	1000～12000
Hot Rolled Coil	1.5～12	1050～2900	～
Cold Rolled Coil	Min 0.1	1000～2650	～
